The latest version of the noise absorber that everyone has actually experienced its effectiveness!
Designed and manufactured based on the core philosophy of "reducing noise and bringing out the vitality of music," the YUKIMU SAA Plug Noise Absorber has solidified its reputation for proven effectiveness in the six years since its release. Designed by Mr. Masahiro Yamazaki, who spent many years working as an engineer at a domestic manufacturer specializing in audio circuit design, designed the noise-absorbing attachment reduces the high-frequency noise generated by digital circuits, microcontrollers, and switching power supplies within the equipment. And by improving the signal-to-noise ratio, it enhances the clarity and resolution of subtle sounds and reproduces a spacious, three-dimensional soundstage—qualities that are essential to high-fidelity audio. And now, we are pleased to announce the release of the longawaited new version of the PNA-RCA01. We view this not only as the successor to the PNA-RCA01, the series’ debut model, but also as a significant step forward that demonstrates how the PNA series has raised the bar even higher.
PNA-RCA01 Rhodium
As the name “Rhodium” suggests, this model features rhodium plating on the terminals. Rhodium is a rare and expensive precious metal with high hardness and mechanical properties that allow it to maintain contact pressure over long periods. Combined with the center pin made of highly conductive copper, it delivers sound quality ideal for high-resolution audio. Furthermore, to maximize the inherent properties of the copper and rhodium, the plating process omits the nickel undercoat typically used. While this reduces resistance to friction, it is a measure taken to prioritize sound quality by ensuring complete non-magnetism. Another major change from the PNA-RCA01 is the design of the housing. The PNARCA01 featured a clear resin coating on a brass body, modeled after brass musical instruments. The PNA-RCA01 Rhodium retains the carefully hand-machined brass body while adopting the proven DR plating (a ternary copper-tin-zinc alloy plating) used in the PNA-LAN01. DR plating is also known as a rhodium substitute. While it differs from rhodium in terms of hardness and corrosion resistance, it is equally perfect in terms of non-magnetic properties and is recognized as a hypoallergenic material. Similarly, the housing eliminates the nickel undercoat to ensure harmony with the RCA terminals.
Technical Specification

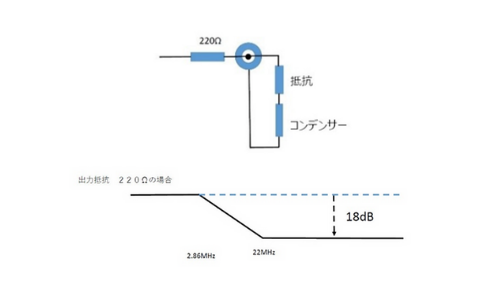

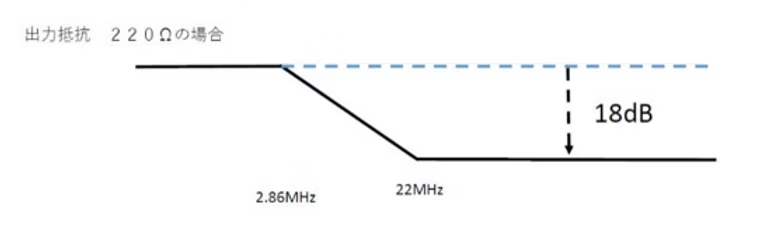

Absorbs high-frequency noise of approximately 3 MHz or higher. (For output resistance of 220 Ω, refer to the attenuation characteristics.)

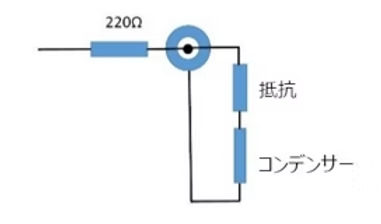

Noise components of approximately 3 MHz or higher superimposed on the audio signal flow into the case via a series circuit consisting of resistor and capacitor.
The high-frequency current is stabilized as it is absorbed by the metal (case).
- It does not affect the audio signal bandwidth (can be used regardless of L/R)
- Unlike shorting (like as ground) pins, it can be attached not only to input terminals but also to output terminals.
- It can be attached not only to analog terminals but also to digital input and output terminals.
PNA-RCA01Rhodium Features
• A pure audio design composed entirely of non-magnetic components.
• Selecting capacitors and resistors brands and determining their values.
In addition to our many years of experience, we conducted repeated, meticulous listening tests on prototypes and carefully evaluated the optimal brands and values for capacitors and resistors. As a result, we selected LCR’s audio-grade styrene capacitors (grade-selected) and Amtrans’s non-magnetic carbon-film resistors (AMRG 2W).
• Overhead wiring by handmade.
Manufactured using air wiring instead of printed circuit boards, which can affect sound quality.
• Copper RCA connector center pin
• Rhodium plating (terminal)
• Use of a machined brass case(Machined).
A metal case with low impedance that quickly absorbs incoming high-frequency currents.
• Other
Features include lead-free solder containing silver for superior sound quality and the use of "PULSHUT," a non-magnetic electromagnetic wave absorber.
• Dimensions: Total length 53 mm, diameter 16.5 mm (grip section)
1977, Matsushita Electronics (current Panasonic) joined. Since then, consistently engaged in electrical circuit design of audio equipment and LD/DVD/BD disc players, including Technics brand products. Developed high quality sound through circuit technology, low noise and other ideas. Retired in 2019 and started the Rakuon Club in 2020. Continues research into high quality sound based on low noise, develops original audio accessory products, and is involved in a wide range of activities, including development support, advice and lectures for audio-related electronics manufacturers.
