Product Review
The Emerson Digital has AES/EBU and S/PDIF outputs allowing a connection to any system equipped with digital audio input.
The Emerson DIGITAL model is the ideal companion to a High-End digital-to-analog converter that does not have a network connection.
Emerson DIGITAL Key Features
· Proprietary streaming solution by engineered SA
· Lossless LEEDH Processing volume control
· “bit-perfect” data path from its RJ45 input to its AES/EBU and S/PDIF outputs
· Innovative and highly performing clock circuit and synchronization system
· Ultra-low phase noise oscillators, < -135dBc/SQ(Hz) at 100Hz and < 50fs RMS jitter
Emerson Series Product Highlights
Technology, precision & quality
The original format of the digital Hi-Res music tracks provided by streaming services must be maintained.
With this in mind, we perform no alterations or conversions in order to fully respect data integrity. The streamed music is fully "bit-perfect" all the way through.
We have added extremely precise clocks which ensure perfect timing of data flow, "jitter-free" from the network playback through to the output signals.
Emotional Instruments of Precision
With no unnecessary features, no compromise on quality and the ease of use that contributed to the reputation of Wattson Audio products, the Emerson Series invites you to spend many hours in its musical world.
Emerson DIGITAL always within Reach
In addition to the multi-function front panel button, the Wattson Music app for IOS and the Wattson Remote app for Android handle all the settings on your Emerson DIGITAL, from the bass EQ to the various interactions with the volume of the device.
You'll also find the entire Hi-Res catalog of TIDAL and Qobuz services, as well as the many radio stations offered by Airable in the Wattson Music app.
Complex and Versatile
The Wattson on-board digital signal processors are extremely advanced, featuring our new proprietary oversampling algorithm.
From LEEDH Processing digital volume control, to calculation of low-frequency correction filters and DSD to PCM conversion, this DSP is a key element in the design and operation of the Madison.

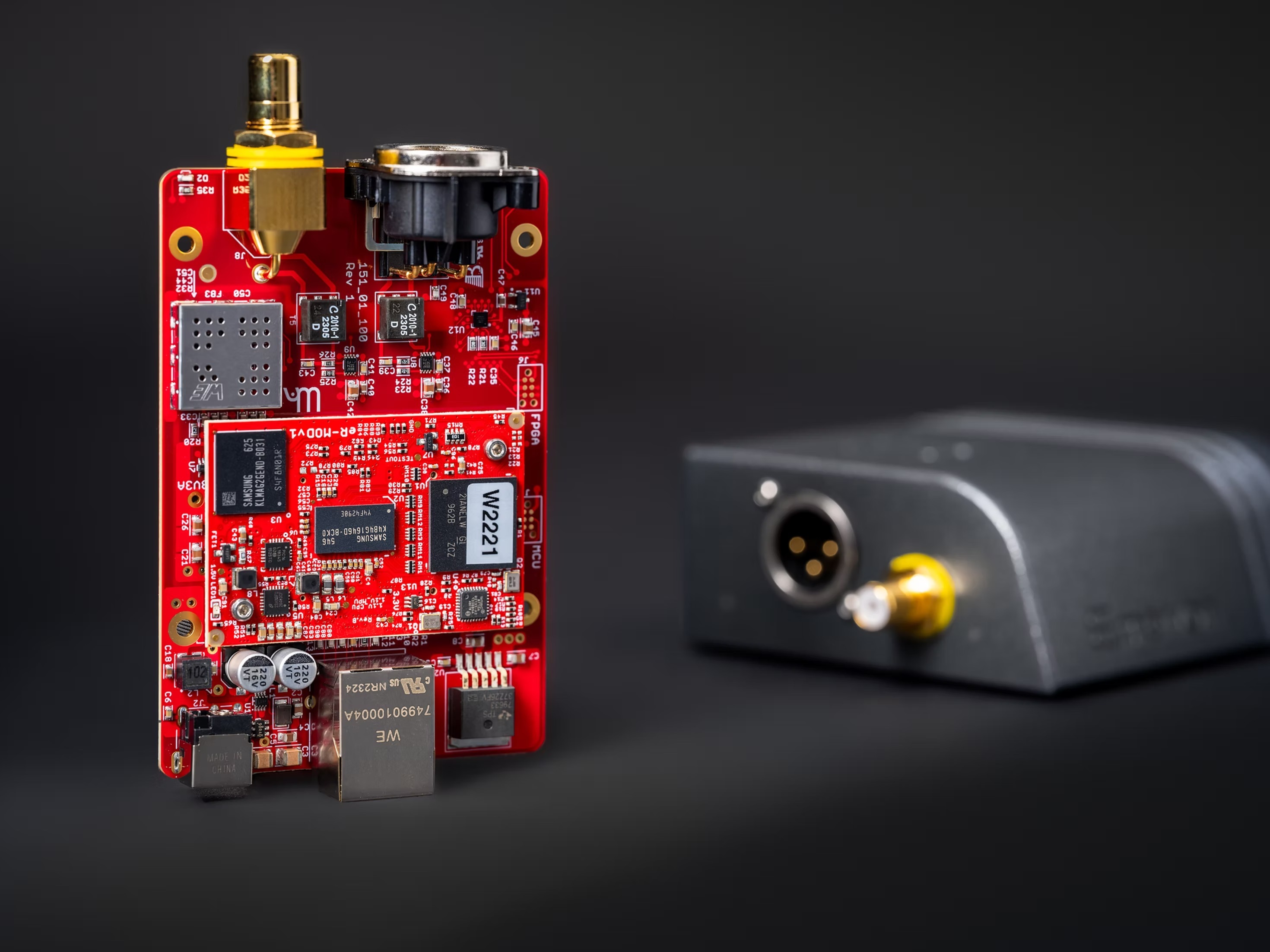

Inside the Technology
The apparent simplicity of our streamers actually hides a complexity and a finesse far greater than it seems. From the choice of the internal components to the embedded software and circuit topologies, each step of the development process has been essential to enhance the listening experience.
Concept
The philosophy implemented in the Emerson DIGITAL is that of the straight wire: no sampling frequency conversion or data processing is applied, apart from volume control when used. The flow of data from the network interface is transmitted directly to the S/PDIF and AES/EBU modulators of the Emerson DIGITAL, or respectively to the digital-to-analog conversion chip in the case of the Emerson ANALOG. When properly implemented, this solution guarantees a transparent and coloration-free reproduction.
Network Interface
The Madison, as well as both Emerson models leverage Engineered's streaming engine, a proprietary solution based on a Sitara processor from Texas Instruments.
The embedded software, which handles the various network communication protocols and audio stream decoding, has been under continuous development for many years. Internal processes have been optimized to ensure audio data integrity, transmission reliability, support for Hi-Res file formats (PCM and DSD) without transcoding, and a smooth and responsive user experience at the same time.
Clocks
Two clock generators are used alternately, depending on whether the track being played back is sampled at a base frequency of 44.1kHz or 48kHz (as well as any multiples thereof). Our streamers do not include a variable oscillator or a synchronization loop. The stream of audio data is therefore directly cadenced by the active clock.
Additionally, the selected oscillators offer superlative performances, with extremely low phase noise in the audible bandwidth. The distribution of the clock signals has been carefully designed to minimize jitter throughout the digital audio signal path.
Output Stages & DAC
The Emerson DIGITAL uses two separate modulators for the S/PDIF output and the AES/EBU output. This is the only way to meet the specifications of both standards without having to make compromises.
High-speed output stages, synchronized by the main clock to avoid jitter, and two wide-band RF transformers ensure independent isolated outputs and a perfect rejection of common mode problems for superior performances.
For the Emerson ANALOG, a DAC from Cirrus Logic was chosen. This is a well-proven integrated circuit capable of impressive playback quality when optimally implemented. Its power supply, output stages topology and filter circuits required a lot of adjustments, measurements and listening before validating the final solution in accordance with the product philosophy.
Power Supply
The quality of the power supply for sensitive electronic circuits is a decisive factor for a device of this type. Once again, a close attention has been paid to the selection of the components and topologies. The choice of using an external adapter offers the advantage of keeping the mains voltage away from the core of the device. The DC voltage supplied by the external power adapter is smoothed by a series of common and differential mode filters and then delivered to the various components of the electronic board. Each critical section of the circuits benefits from a dedicated filtering and voltage regulator to avoid undesirable interactions.
Finally, the power supplies for the clock generators, the synchronization circuits and the analog section are particularly well performing, with an extremely low electrical noise, less than 1µV RMS (measured in a frequency bandwidth from 10Hz to 100kHz).
Compact Elegance, Benchmark Engineering
Emerson DIGITAL is Wattson's unique network bridge solution. It turns any DAC into a streaming DAC or improves the streaming performance of most streaming DACs. Wattson Audio's engineering philosophy: a relentless focus on essentials, including only what enhances performance and usability. This is high-end engineering distilled to its purest form. Delivering a pristine network signal to a DAC is a task rife with challenges, demanding precision to avoid countless potential errors. The Emerson DIGITAL tackles these complexities with innovative solutions that stand among the finest network bridges in the industry.
Every detail of the Emerson DIGITAL network bridge—from its carefully chosen components and advanced circuit topology to its solid billet casework and proprietary software—reflects our deep expertise and commitment to quality, honed through providing streaming solutions for some of the most respected brands in the industry. Its core is built around the Sitara processor from Texas Instruments and powered by our updatable software—technology found in some of the market’s most prestigious digital products.
Pure Musicality, Future-Proof Precision
Wattson Audio's dedication to updatability ensures that the Emerson DIGITAL remains future-proof, effortlessly adapting to the ever-evolving landscape of network communication protocols. It delivers excellent audio data integrity, dependable transmission, and native Hi-Res file support while providing a smooth and intuitive user experience.
The Emerson DIGITAL is a "bit-perfect" device designed to maintain signal integrity from its RJ45 input to its AES/EBU and S/PDIF outputs. Each output employs a dedicated modulator and is optimized for its specific format. Its circuitry revolves around a bespoke internal clock powered by two ultra-low-noise phase oscillators: one for base frequencies of 44.1kHz and multiples and the other for 48kHz and multiples. These oscillators are activated individually to minimize noise and jitter, while their clock signals are carefully distributed to reduce jitter throughout the digital signal path.
The Emerson DIGITAL's is a versatile partner for any DAC or digital component, whether to add streaming capability or elevate existing performance. Delivering an elevated musical performance at an accessible price requires a resolute dedication to precision and purpose. It demands a sharp focus on what truly serves the music, choosing only the features that matter and implementing them with care and expertise. This is Wattson Audio's design philosophy: achieving the highest performance by doing everything with intention and nothing without meaning.
Swiss Ingenuity Behind Every Wattson Audio Model
Wattson Audio's build quality is a testament to our philosophy of combining precision engineering with timeless design. Meticulously engineered, using premium components, every detail is crafted for durability and peak performance.

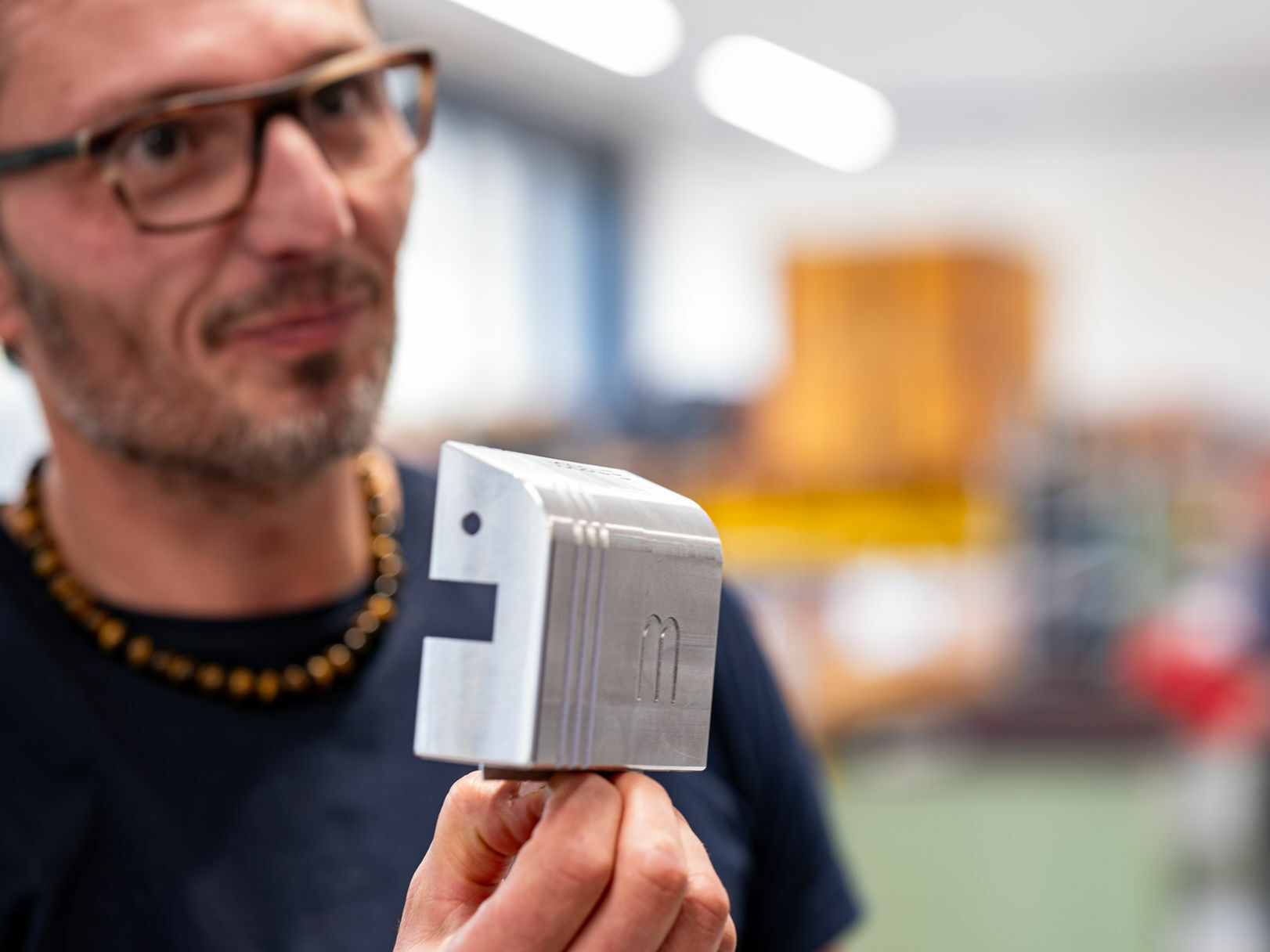

The Emerson DIGITAL network bridge utilizes solid-billet aluminum casework, precisely machined to enhance structural integrity and acoustic isolation. Though costly, this approach ensures enduring performance and inspires confidence and pride in ownership.
The Perfect Harmony of Control, Simplicity, and Pure Sound
Wattson Music is your trusted partner in every musical journey, providing seamless access to your library and favorite streaming services. The app also affords precise control over advanced device settings. Designed with simplicity and precision, the Wattson Music app for iOS and Wattson Remote for Android are the conduits to the music you love. Intuitive and effortless, these apps ensure an immersive experience, offering both easy navigation of your library, streaming services, and complete command of your Wattson Audio device.
Designed to meet the demands of an ever-evolving digital landscape, this streaming engine represents the culmination of years of tireless innovation and meticulous refinement. Engineered with an unrelenting commitment to signal integrity and transmission precision, it delivers uncompromising performance at every level. With native support for Hi-Res audio formats—spanning PCM and DSD—it invites listeners into a realm of pure, unadulterated sound. Paired with an interface that is as elegant as it is intuitive, it redefines the art of streaming, effortlessly bridging cutting-edge technology with the soulful beauty of music.
Specifications
Connectivity
Network input: 100Mbit/s Ethernet

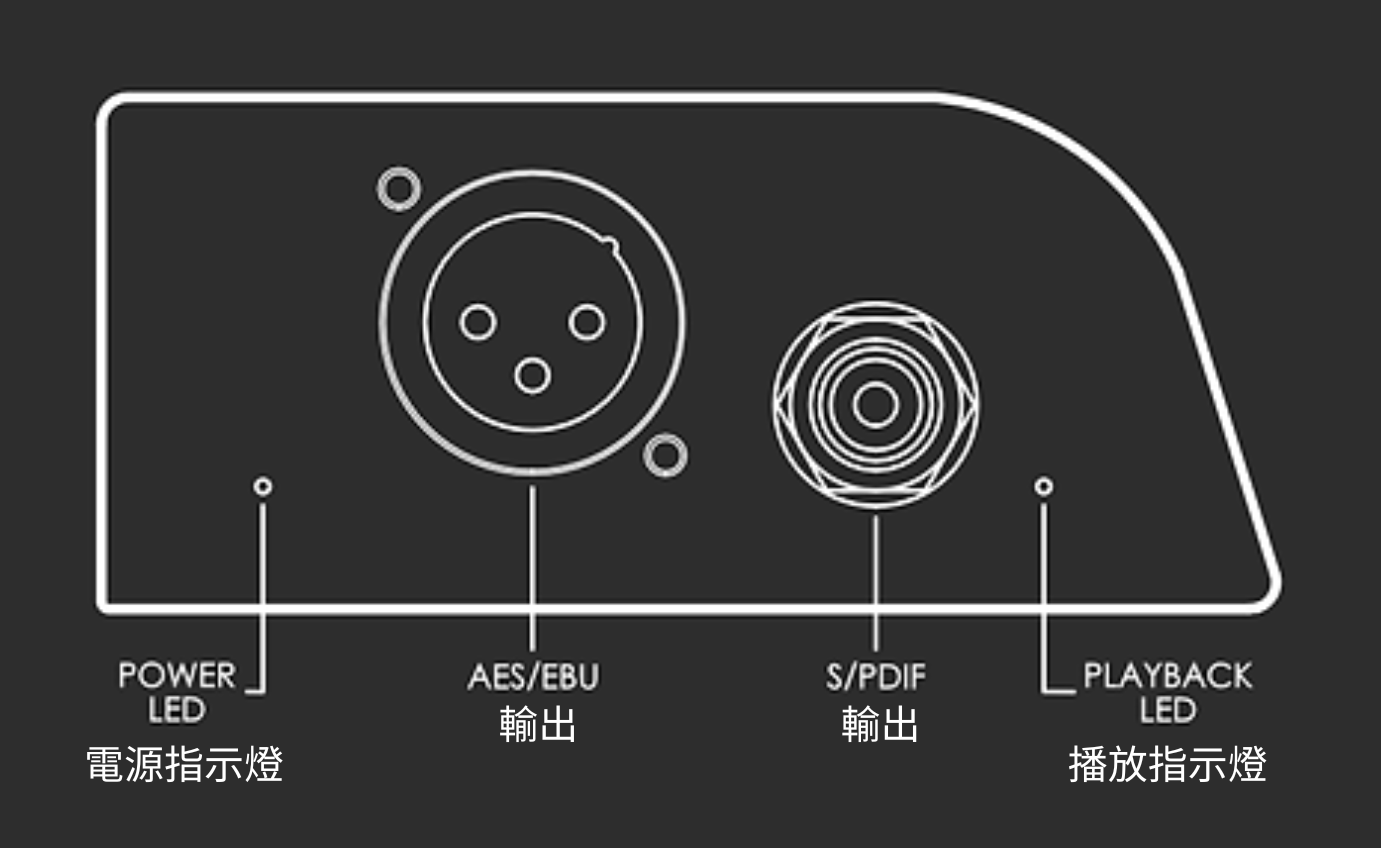

Digital output: 1x S/PDIF on RCA connector and 1x AES/EBU on XLR connector
Restitution
Supported compression formats: WAV, FLAC, AIFF, ALAC, MP3, AAC, Ogg Vorbis, WMA
Network streaming resolution: PCM up to 24-bit 192 kHz
Control protocols: UPnP/DLNA, AirPlay compatibility, Roon Ready
Streaming services brought by the Wattson Music app: TIDAL¹, Qobuz², airable radios
Performance
S/PDIF output: 75Ω, with isolation transformer
AES/EBU output: 110Ω, with isolation transformer
Very low noise power supply (< 1µV RMS 10Hz-100kHz)
Mechanical and electrical characteristics
Dimensions (W x D x H): 4,1 x 3,4 x 1,5in (104 x 87 x 38mm)
Weight: 0,82lb (371g)
Power supply: 5V DC, external, medical grade
Power consumption: 1,5W (idle), 2,5 W (playing)
Designed and Crafted in Switzerland
Every Wattson Audio product is designed and crafted in Switzerland, embodying the country's renowned precision and quality. From design to assembly, every detail is executed with care. Enclosures are milled in Switzerland from solid-billet aluminum for strength, durability, and thermal properties, providing a robust, resonance-free foundation critical to sonic excellence.
