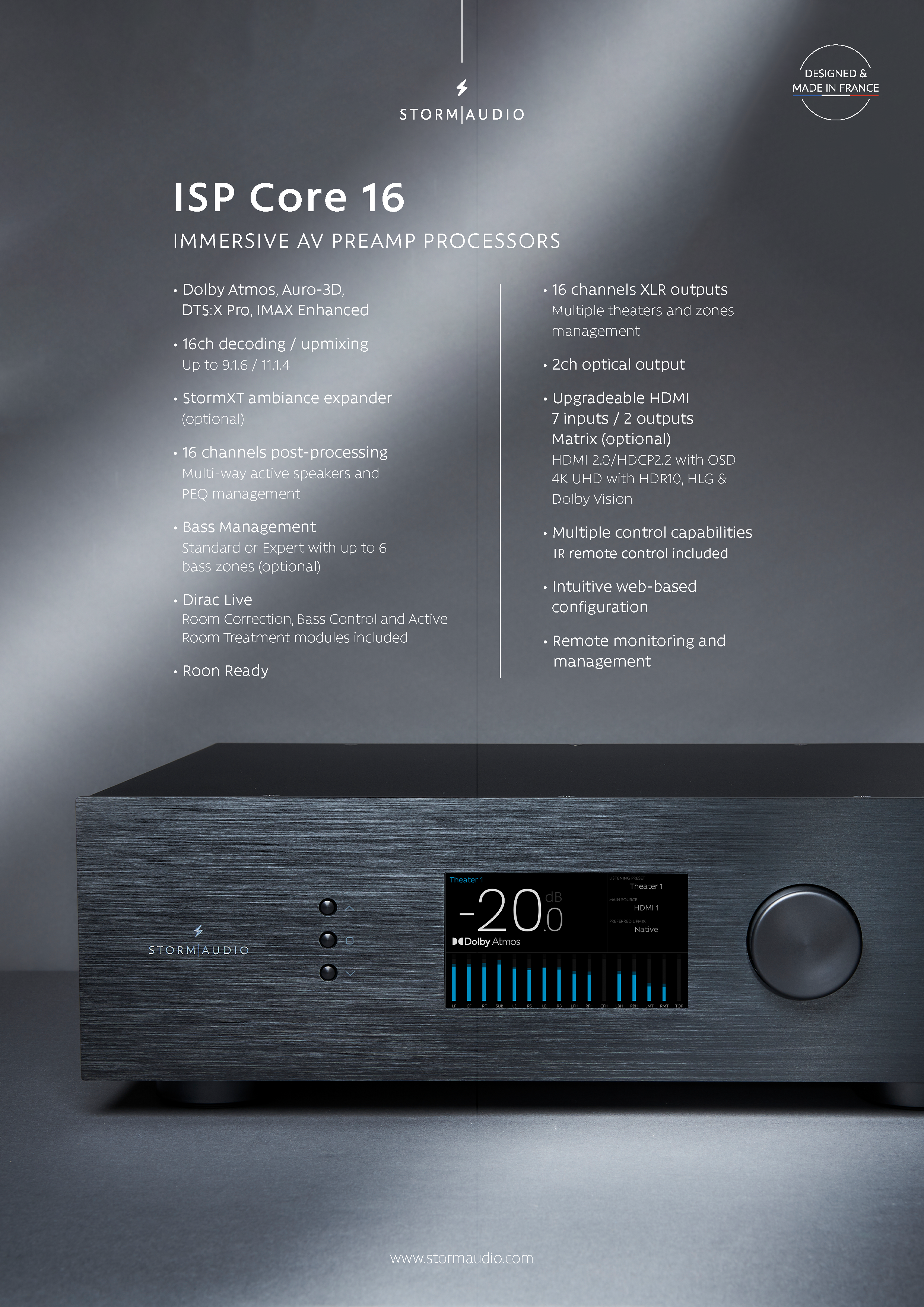

Storm Audio ISP Core 16 Immersive Sound Processor
With a design based on the StormAudio ISP Elite platform, the ISP Core 16 is a sleek, compact and premium option that delivers StormAudio's signature functionality and performance in a 3U chassis.
Supporting 16 channels, it carries all the Elite platform features such as 20 PEQs per channel, multi-way speakers management and any number of subwoofers.
Intuitive
The ISP Core 16 can be easily controlled by a variety of tools, ranging from the included IR remote control to home automation systems or the Android/iOS app available on smartphones or tablets.
Powerful
Based on the ISP Elite, it delivers the same audio performance using identical DAC components and a unique analog/digital hybrid volume control, enhancing dynamic range to deliver detailed reproduction of movie soundtracks and music playlists.
Versatile
Supporting up to 16 channels and having the DSP power to decode all the latest immersive formats, ISP Core 16 enables post-processing to optimize any speaker to any room straight out of the box.

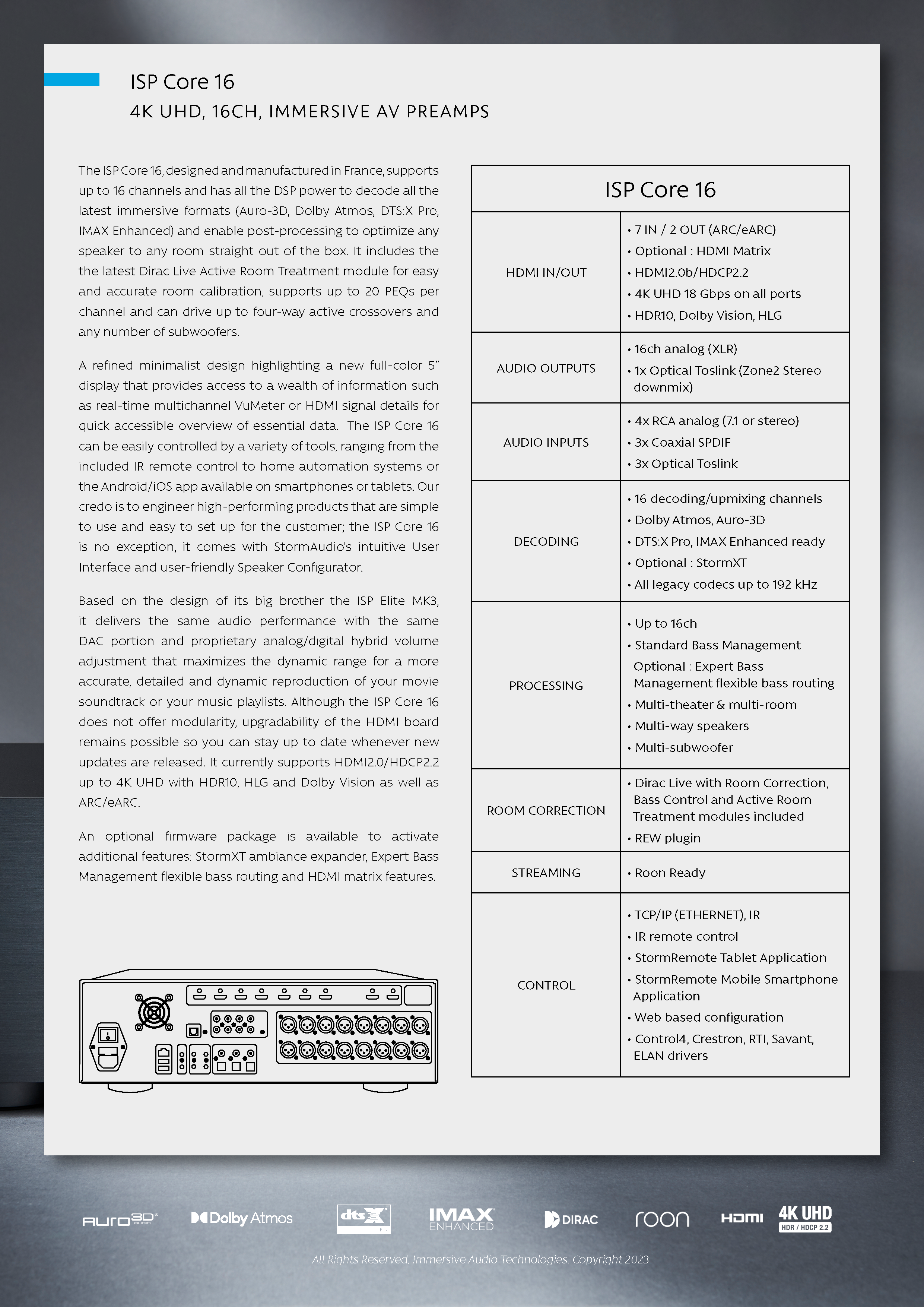

PRODUCT SPECIFICATIONS
16 CHANNELS DECODING / UPMIXING
OUPUTS:
16ch analog (XLR)
1x Optical Toslink (Zone2 Stereo downmix)
INPUTS:
4 RCA analog (7.1 or stereo)
6 SPDIF (3 x optical / 3 x coaxial)
HMDI IN/OUT:
7 IN / 2 OUT (ARC/eARC) / Optional HDMI Matrix
HDMI2.1 / HDCP2.3
4K UHD / 8K 40 Gbps on all ports
HDR10+, Dolby Vision, HLG
PROCESSING:
Up to 16ch, Multi-theater, Multi-layout & multi-room, Standard Bass Management, Multi-way speakers, Multi-subwoofer.
Optional: Expert Bass Management flexible bass routing
ROOM CORRECTION:
Dirac Live with Room Correction, Bass Control and Active Room Treatment modules included, REW plugin
AUTOMATION CONTROL:
TCP/IP (ETHERNET), IR, IR remote control, StormRemote Tablet Application, StormRemote
Mobile Smartphone Application, Web based configuration, Control4, URC, Crestron, RTI, Savant, Nice (former ELAN) drivers
DIMENSIONS & WEIGHT:
40,22 x 44,2 x 13,27 / 9 kg
EARS : +4CM (2X2CM) –
FEET : +2CM
ROON READY
5 YEARS WARRANTY
GENERAL SPECIFICATIONS
• Compact design
• Software-based upgradeable platform
Includes:
- Decoding of up to 16 discrete channels
(Auro 3D, Dolby Atmos, DTS:X Pro, IMAX Enhanced)
- Dirac Live licenses included: Full Bandwidth Room Correction + Multi-
Subwoofer Bass Control + Active Room Treatment
- Multizone capability with Dirac Live calibration in each zone
- Optional license bundle available
In the box:
- Feet and rack ears
- IR remote control
- Power cord
