“Canarino Bridge DUB” is the first “pure Diretta Bridge appliance” in Orio spec.
Until now, the hardware of similar models sold by Oriospec used a general-purpose PC platform, but this model uses a Diretta original platform that implements a dedicated module called Diretta Lucia Piccolo.
*Diretta Target PC is based on x86 mini PC, and Diretta Target Pi is based on Raspberry Pi4.
This is the latest module exclusively for Diretta (as of November 1, 2021), and it is based on his Diretta Lucia (adopted by SPEC's RMP-UB1), which is in the high-end range, and has been simply rebuilt into one board, including the interface area. One of the points of making it basic is that the noise countermeasure function around LAN and USB has been simplified. For this reinforcement, we are planning to replace it with commercially available third-party external accessories, which will greatly expand the scope of sound tuning available to the user compared to existing models. Along with reconsidering key devices, this can be said to be a clever method for achieving low costs.
Oriospec is also the launch customer for this new module, and is heavily involved in the development of standard specifications for the module, including sound tuning and parts selection.
▽Being named the Canarino brand - Thoughts as a product developed in-house▽
Since the installed Diretta Lucia Piccolo is a sophisticated module, the housing was seen as the last bastion of sound tuning.
The sound of the Diretta Lucia Piccolo changes greatly due to slight differences in each element, such as case structure, case material, screw material, torque, and damping. Whether you make use of this sensitive module or kill it depends on the arrangement of the housing.
We have completely arranged the specifications of the housing by carefully reviewing the results of trial-end errors and carefully collecting the results of actual listening tests.
▽What was the most important thing when commercializing it?▽
"What does Oriospec think Diretta's sound is like? What's so great about it?"
When commercializing the product, we unified the understanding among development staff about the appeal that Diretta can have. As a result, we set the foundation for all development-related judgment criteria to be ``original experience,'' with the goal of ``let's honestly express the shock I felt when I first heard Diretta's sound.''
"The keyword is 'air feeling'"
It's like breaking through to the clear sky. We try not to deviate from this criterion when tuning the sound using Oriospec for the ``Canarino Bridge DUB''.We wanted to create something that Oriospec could confidently talk about as the ``standard of Diretta sound.'' Enjoy the unique Diretta sound that allows you to feel the subtleties of music with this "Canarino Bridge DUB."
▽Consideration for being a standard segment▽
When commercializing the product, we paid particular attention to the following two points.
As it is a standard segment product, we must fully consider the possibility that it will be applied to audio systems of various tastes, such as price range, manufacturing year, and regional attributes. In particular, the system's high adaptability in terms of sound should be a major point. It is natural to be careful not to tune the product itself to an extreme sound, but also to leave room for adjustment so that the user can freely tune the sound to suit their individual tastes. thing". In other words, we considered "flexibility" to be an important aspect.
At the same time, we will fully respond to user requests regarding accessory tuning. The fun of customization is a very attractive element that supports the audio mindset. Similar to the basic nature of the installed module, Diretta Lucia Piccolo, the finished product, Canarino Bridge DUB, also has a user-oriented audio mindset.
▽Example of user customization▽
The direction of the compass that leads to the final version of Canarino Bridge DUB can be said to depend on the user's preferences. Tuning points are scattered throughout, so users should be able to fully enjoy original customization of both sound and system style while reflecting their own ideas.
1. Sound tuning with attached insulator
Canarino Bridge DUB comes with three types of insulators.
·rubber foot
・Brass spike insulator (with M4 screw)
・Stainless steel spike insulator (with M4 screw)
The sound changes greatly depending on the material of the insulator, so you can use this property to tune the sound. Please enjoy tuning while using your own ears to determine your preference and system suitability. Of course, you are free to use insulators other than those included.
2. Sound tuning by replacing the power supply unit
It must have a “modern” low power consumption specification that can operate at 5V/2A. This means that you can freely choose from a wide variety of AC adapters available in the market. Therefore, it can be said to be a huge advantage. With power consumption specifications of this level, you should be able to freely customize your favorite power supply unit from products from various manufacturers, regardless of whether it is a switching power supply or a linear power supply.
By the way, the included power supply unit is a switching type GaN AC adapter, which is familiar from Oriospec, which has a reputation for high sound quality. As an example of an upgradeable linear power supply, we have confirmed operation with a Fidelix 5V linear power supply. (However, it will not work if you are using a bus-powered USB DAC) You can change the price by changing the price from the customization menu when placing your order.
3. Considering interface measures such as USB and LAN
In the market, noise suppression products around USB and LAN are now being released by various vendors in a wide range of prices. You may already have the product in your possession. By making full use of such products, it will soon be possible to approach the functionality and quality of high-end modules.

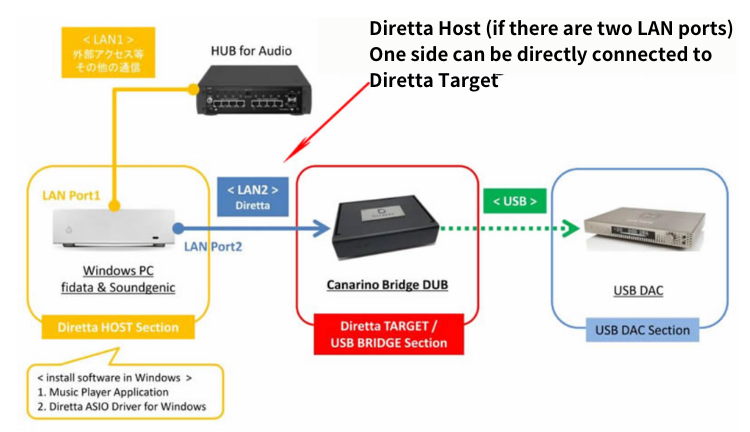

<Arrangement in the system configuration of CanarinoBridgeDUB-DirettaUSBBridge->
Basics: Cable wiring and digital sound data flow
Advanced edition: Cable wiring and digital sound data flow <When dividing Diretta and other communication paths>
[What is Diretta?]

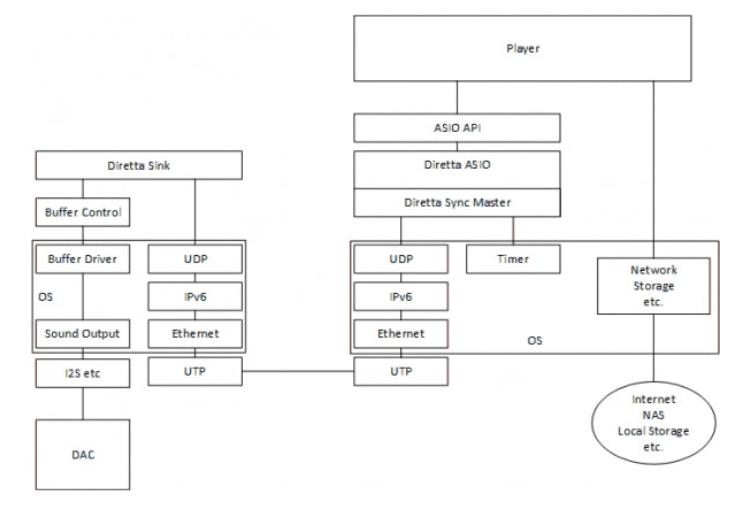

Diretta is an entirely new protocol designed for high-end audio. Its philosophy is completely different from existing protocols. There are many factors that affect the sound quality of an audio player. Power supply noise emitted by digital blocks on the circuit greatly affects sound quality. To suppress this noise, capacitors and inductors are usually placed on the power supply. This creates a low-pass filter that reduces spike-like noise typical of digital. However, as you can see from the fact that it is a low-pass filter, low frequency fluctuations are passed through. This is not noise, so there is no need to remove it, and you cannot see it even if you observe it with voltage. However, when observing the current, it can be seen that there is noise that affects the audible band with a certain period. Admittedly, this is difficult to remove electrically. We thought that if we could suppress this noise, the sound quality could be greatly improved. However, it is very difficult and unrealistic to configure the CPU and other devices to have a constant current configuration like a class A amp. If we can solve this problem using a software approach, we can see a realistic implementation. One way to do this is to average out the processing and reduce fluctuations in power consumption. Diretta would like to propose an answer to this problem. The player with the analog part is the Target, and the server with the storage etc. is the Host. The Target and Host are designed using different concepts. Target simplifies processing so that processing is minimal and can be averaged. It is similar to hardware processing in FPGA and consists of simple processing. The Host operates in synchronization with the Target so that the processing of the Target can be averaged. Whenever possible, send packets at regular, short intervals to average out the processing. Predict and control the Target buffer. As a result, fluctuations in power consumption are averaged out as much as possible for the target player. It is similar to USB sync, but since the host side synchronizes, the target side does not change the speed. No buffer or flow control like USB ansync. Also, since it is Ethernet, it can use fully isolated connections and can also be used with fiber cables. It does not perform complex processing such as file range requests like UPnP. There is no complicated processing required to synchronize multiple devices such as AES67. Diretta will continue to prioritize sound quality, and strive to minimize the impact on analog blocks. We will continue to evolve.
Diretta network configuration
[Product composition]
This product is a dedicated Diretta Target machine based on the Diretta Piccolo module. Connect the USB DAC provided here and use it by connecting it to the host PC via network. You can connect to a hub under the same router that the host PC is connected to, or connect directly to the host PC via LAN. I think it will probably work with any DAC other than those that claim to be uncompatible with Linux, but I cannot guarantee it. Thank you for your understanding in advance. We will keep you updated on the status of connectable USB DACs.
<Contents>
canarino Bridge DUB body
Body size: 128mm (W) x 92mm (D) x 33mm (H) (excluding legs)
GaN charger
USB-C (male) - DC jack (5.5-2.1φ male) 5V output conversion cable (1m)
·rubber foot
Brass spike insulator (with M4 screw)
Stainless steel spike insulator (with M4 screw)
Simplified handling manual
In addition to this product, the following equipment is required for playback.
1.USB DAC
2. Windows PC with Windows 10 64bit version installed (playback app and dedicated ASIO Driver installation required)
(Intel Core i3 or higher with 4 Cores or higher or CPU such as AMD RYZEN recommended, 2 or more LAN ports recommended) or IODATA fidata, Soundgenic
3. Wired or wireless router
4. USB external hard disk containing sound source files, etc.
5. Audio amplifier capable of receiving XLR balanced output or RCA unbalanced output
[Preparation]
[Installing ASIO Driver for Windows PC]
Please download the dedicated ASIO Driver from here and install it on your Windows PC.
[Installing the playback app for Windows PC]
Please install a playback app that supports ASIO output on your Windows PC.
You can use JRiver Media Center, foobar2000, Roon, Audirvana for Windows, etc.
If you are using the Roon playback app and cannot install the Diretta ASIO Driver on a Macintosh or Roon dedicated server machine, etc.
For those who wish to use Diretta, we have prepared a Roon Diretta repeater. "Roon Diretta Output Repeater"
[Connection of each device]
Connect canarino Bridge DUB and USB DAC with a USB cable. Either USB port on canarino Bridge DUB is fine.
It is possible to connect two USB DACs at the same time. However, it can only be output to either one. (simultaneous output not possible)
Connect canarino Bridge DUB to your home network router (switching hub) or access point using a LAN cable. It is also possible to directly connect the host PC and canarino Bridge DUB with a LAN cable without connecting to a home network.
Power on the canarino Bridge DUB and USB DAC.
After canarino Bridge DUB starts up, the status LED on the bottom of the main unit lights up in red, and when the USB DAC recognizes it and is ready for playback, both red and green light up. (Specifications have been changed from shipments on February 24, 2023)
Since we will play using the Windows PC playback app you provided, you can either save the sound source on this PC or connect an external USB hard disk etc. to store the sound source.
If you have connected two USB DACs, open Diretta ASIO configre and select the output destination from Connect Target.
[Playback application settings (for JRiverMediaCenter)]

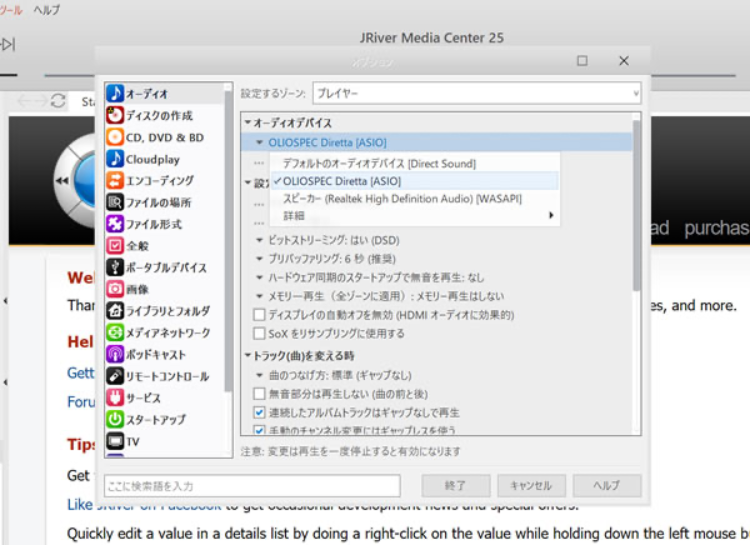

1. Select “OLIOSPEC Diretta [ASIO]” from Tools → Options → Audio Device

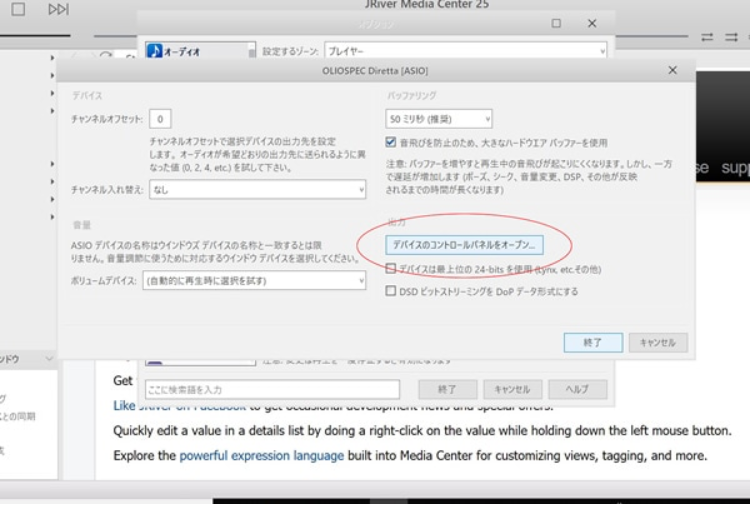

2. Device settings → Click “Open device control panel”
3. Check that “OLIOSPEC_Bridge” is displayed from Connect Target.
There is no problem in selecting OLIOSPEC_Bridge or leaving it as AUTO.
If you connect two USB DACs, please select the output destination.
[Playback app settings (for Roon)]

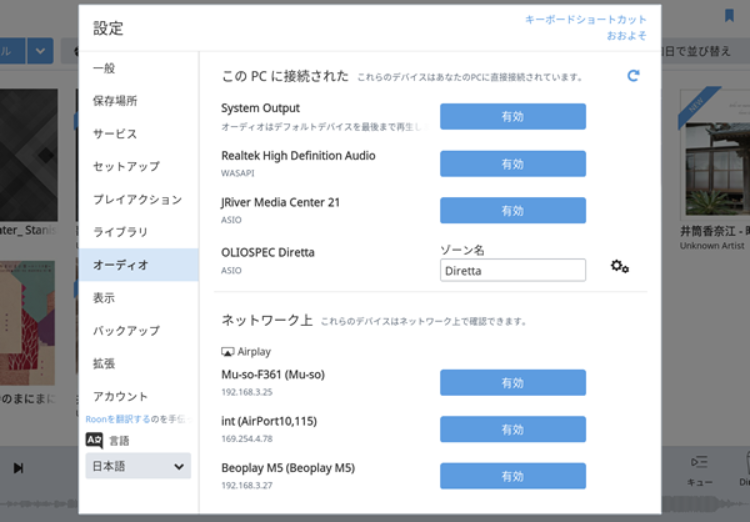

Enable “OLIOSPEC Dretta” in Settings → Audio
[System termination]
Unplug the DC cable connected to the DC input of canarino Bridge DUB to turn off the power.
[About PC Internet connection]
We recommend constant connection unless there are special circumstances. It can also be operated in a local environment.
【support】
This packaged product allows even those without advanced PC knowledge to easily experience the high sound quality of Diretta at a reasonable price.
It was designed for a purpose. Therefore, if the usage deviates from the initial settings at the time of sale, support regarding music playback operations will not be provided.
It cannot be done.
The only support point is the seller, Oriospec.
If the main unit becomes physically unusable due to a natural disaster, etc., please contact us.
