MAGNETAR UDP800 MKII — High-End 4K Blu-ray/SACD Universal Player | A Refined Evolution Creating a New Realm of Pure Sound and Vision!
Developed by the MAGNETAR engineering team with advanced digital technology and meticulous component selection, the UDP800 MKII delivers comprehensive enhancements in image processing, audio circuitry, and power stability. Building on the outstanding performance of the first-generation UDP800, it once again redefines the benchmark for high-end 4K Blu-ray players.
The UDP800 MKII not only supports Dolby Vision and HDR 10+ high dynamic range formats, but also introduces a newly implemented TMDS retiming technology to effectively reduce HDMI audio jitter. The upgraded audio stage now employs seven OPA1602 operational amplifiers and a reinforced USB 3.0 system with isolated power supply. All internal wiring has been replaced with high-purity copper conductors, while Amphenol and JST connectors ensure superior signal integrity and precision. With added support for Control4 and Crestron smart home systems, the UDP800 MKII offers greater installation flexibility and expanded integration possibilities.
MAGNETAR UDP800 MKII Product Features
- Supports UHD 4K Blu-ray and SACD playback, fully compatible with Dolby Vision and HDR 10+ high dynamic range standards.
- Supports Dolby Atmos and DTS-X multi-channel audio formats for immersive surround sound.
- Supports SACD, DVD-Audio, and CD playback, as well as media file playback via external USB and network streaming.
- Equipped with a dedicated HDMI audio output port featuring upgraded TMDS retiming, achieving true audio and video separation.
- Newly designed 4-layer audio PCB with independent channel wiring, featuring dual Burr-Brown PCM1795 DACs and seven OPA1602 operational amplifiers.
- All internal wiring upgraded to high-purity copper conductors, utilizing Amphenol and JST connectors for enhanced stability.
- Powered by a professional-grade quad-core MediaTek MT8581 processor, with 12Gb Samsung DDR memory and 4Gb NAND flash storage.
- Utilizes a 6-layer PCB design with high-precision LDO regulators, Murata MLCC multilayer ceramic capacitors, and NCC electrolytic capacitors.
- Equipped with Hi-Fi grade gold-plated balanced XLR and RCA analog audio output terminals.
- Features a double-layer reinforced chassis for enhanced rigidity and anti-vibration stability.
- Optical drive frame finished with spray coating and lined with sound-absorbing cotton to reduce vibration and mechanical noise.
- Custom 60W high-power low-noise transformer with two-stage filtering for stable, clean power output.
- Enhanced USB 3.0 system with isolated power supply, supporting playback from external hard drives up to 16TB.
- Capable of sharing video, music, and photo files via DLNA, SMB, and NFS network protocols.
- Outfitted with Hi-Fi grade gold-plated XLR balanced and RCA unbalanced outputs.
- Dedicated “Pure Audio” mode designed exclusively for high-fidelity music listening.
- Roon Ready certification in progress.
- Supports Control4 and Crestron smart home control systems.
- Stunning Audio-Visual Quality
UDP800 MKIl supports Dolby Vision and HDR 10+, presenting breathtakingly vivid and realistic UHD movies. Regarding audio, it supports Dolby Atmos and DTS-X. With a dedicated HDMI audio output to achieve audio and video separation. For pure audio playback, UDP800 MKIl specifically adopts a 4-layer PCB with independent channel wiring, equipped with two Burr-Brown PCM1795 DACS and upgraded to seven OPA1602s, creating audiophile-grade sound.
The added TMDS retiming function on the main board's HDMI AUDIO port effectively compensates for random jitter, provides better signal quality and load-carrying capacity, and further improves the HDMI audio quality, making the sound details richer.

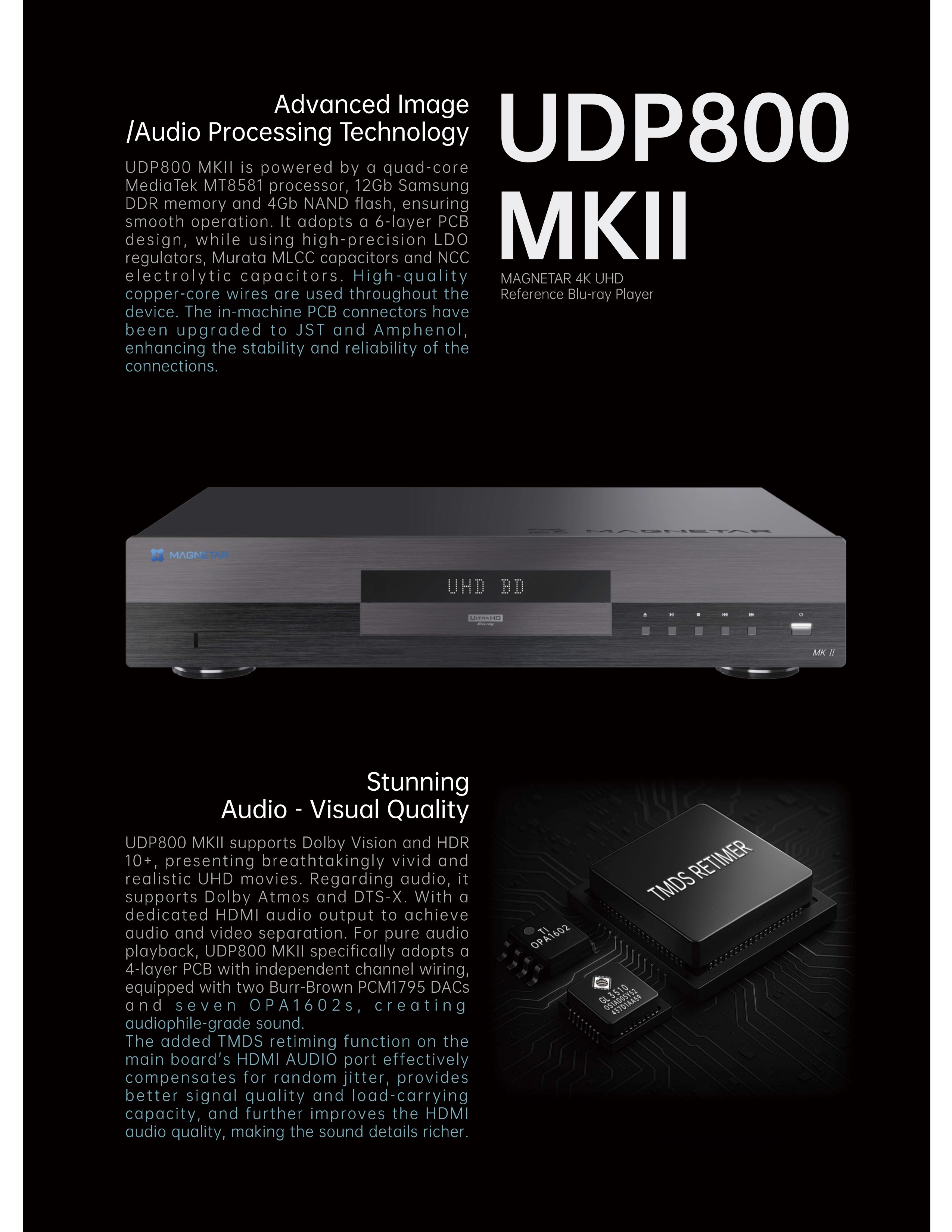

Advanced Image / Audio Processing Technology
UDP800 MKIl is powered by a quad-core MediaTek MT8581 processor, 12Gb Samsung DDR memory and 4Gb NAND flash, ensuring smooth operation. It adopts a 6-layer PCB design, while using high-precision LDO regulators, Murata MLCC capacitors and NCC electrolytic capacitors. High-quality copper-core wires are used throughout the device. The in-machine PCB connectors have been upgraded to JST and Amphenol, enhancing the stability and reliability of the connections.

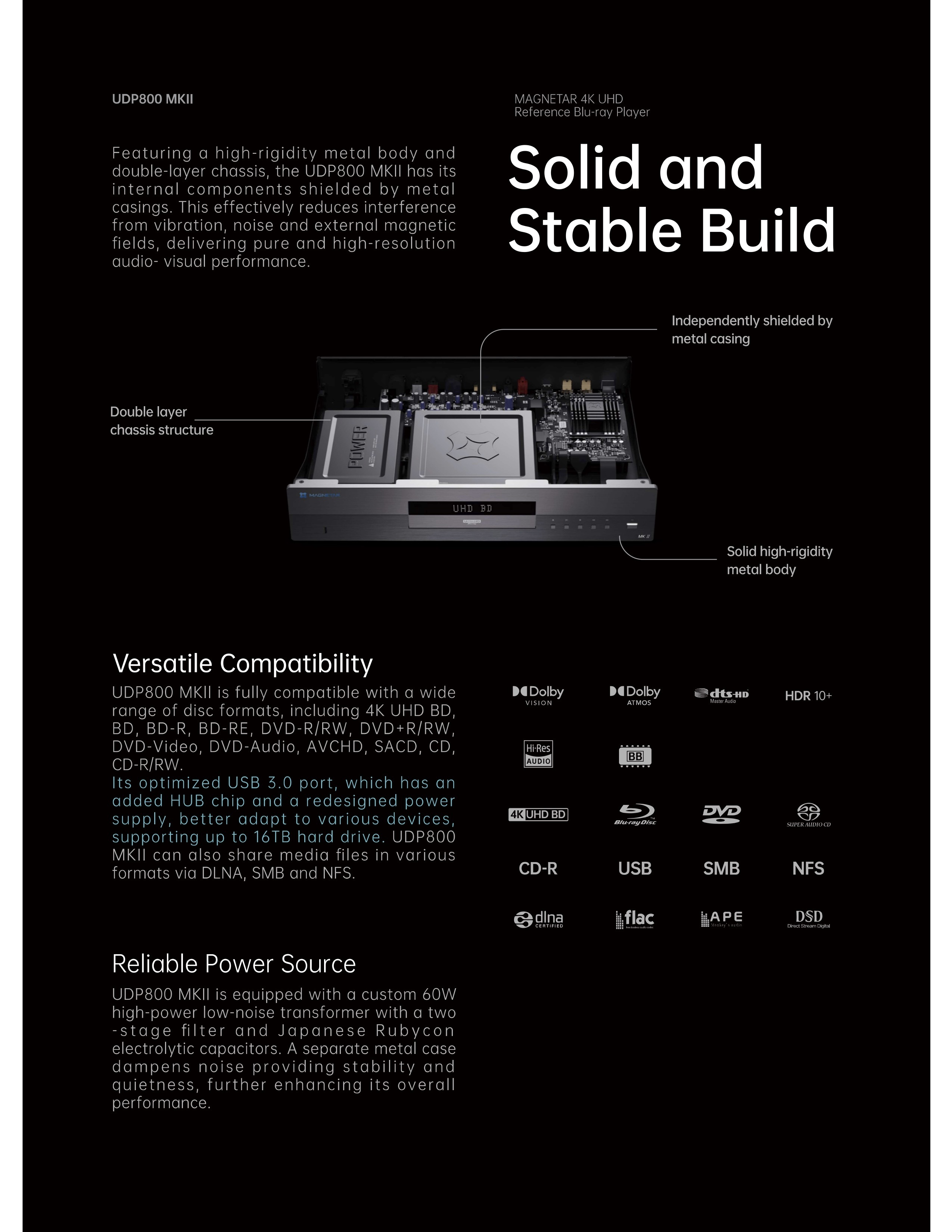

Solid and Stable Build
Featuring a high-rigidity metal body and double-layer chassis, the UDP800 MKIl has its internal components shielded by metal casings. This effectively reduces interference from vibration, noise and external magnetic fields, delivering pure and high-resolution audio-visual performance.
The frame of the optical drive is spray-painted, and adds sound-absorbing cotton to the drive's outer casing, enhancing durability and reducing noise.
Reliable Power Source
UDP800 MKIl is equipped with a custom 60W high-power low-noise transformer with a two-stage filter and Japanese Rubycon electrolytic capacitors. A separate metal case dampens noise providing stability and quietness, further enhancing its overall performance.
Versatile Compatibility
UDP800 MKIl is fully compatible with a wide range of disc formats, including 4K UHD BD, BD, BD-R, BD-RE, DVD-R/RW, DVD+R/RW, DVD-Video, DVD-Audio, AVCHD, SACD, CD, CD-R/RW. Its optimized USB 3.0 port, which has an added HUB chip and a redesigned power supply, better adapt to various devices, supporting up to 16TB hard drive. UDP800 MKIl can also share media files in various formats via DLNA, SMB and NFS.

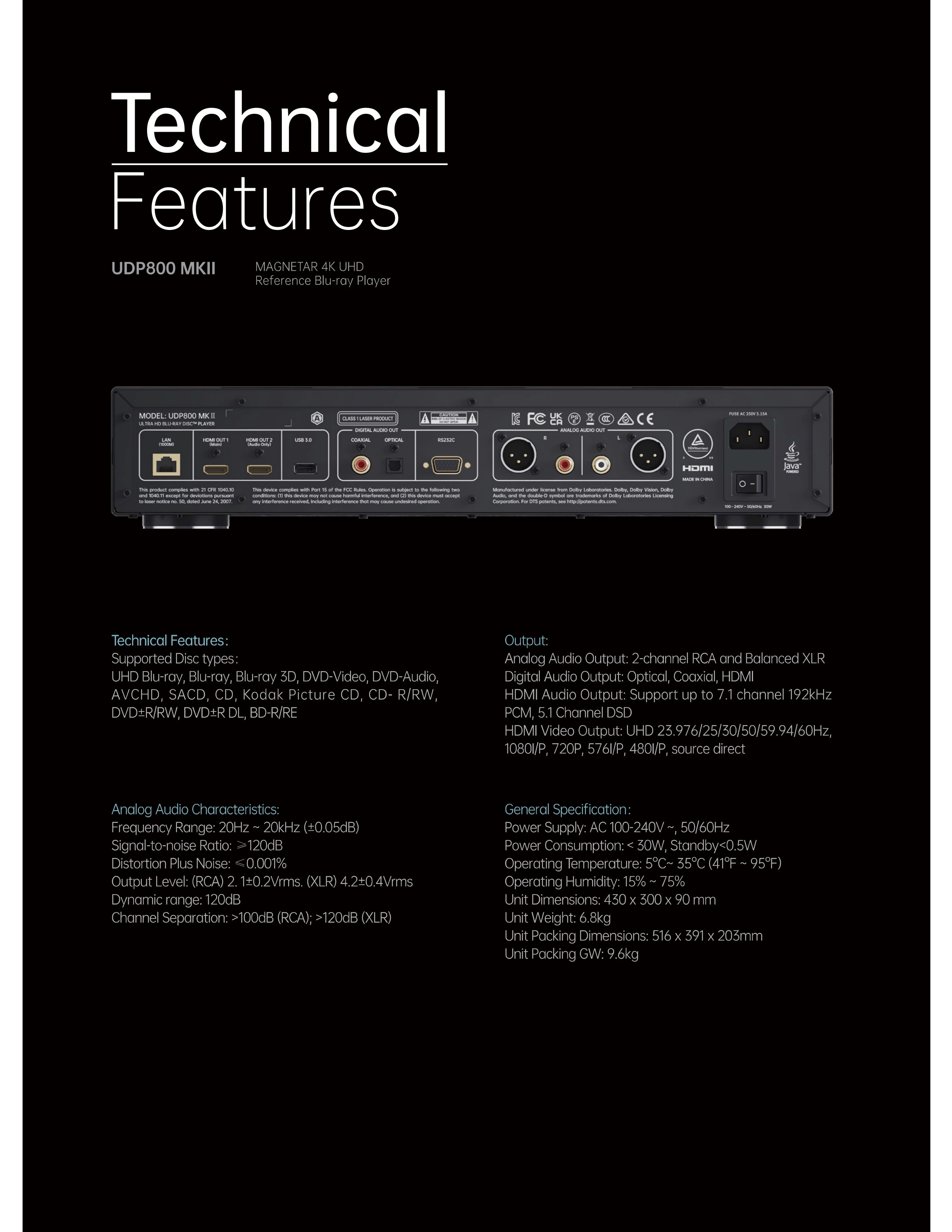

Technical Features
Supported Disc types:
UHD Blu-ray, Blu-ray, Blu-ray 3D, DVD-Video, DVD-Audio, AVCHD, SACD, CD, Kodak Picture CD, CD-R/RW, DVD±R/RW, DVD±R DL, BD-R/RE
Output:
Analog Audio Output: 2-channel RCA and Balanced XLR
Digital Audio Output: Optical, Coaxial, HDMI
HDMI Audio Output: Support up to 7.1 channel 192kHz PCM, 5.1 Channel DSD
HDMI Video Output: UHD 23.976/25/30/50/59.94/60Hz, 1080I/P, 720P, 576I/P, 480I/P, source direct
Analog Audio Characteristics:
Frequency Range: 20Hz-20kHz (±0.05dB)
Signal-to-noise Ratio: ≥120dB
Total Harmonic Distortion Plus Noise: ≤0.01%
Output Level: (RCA) 2.1±0.2Vrms; (XLR) 4.2±0.4Vrms
Dynamic Range: ≥120dB
Channel Separation: >100dB (RCA); >120dB (XLR)
General Specification:
Power Supply: AC 100-240V ~, 50/60Hz
Power Consumption: ＜30W, Standby <0.5W
Unit Dimensions: 430 x 300 x 90 mm
Unit Weight: 6.8kg
Unit Packing Dimensions: 516 x 391 x 203mm
Unit Packing GW: 9.6kg
