For record lovers, new and old.
The ZEN Phono 3 redefines what your turntable can do. Its intelligent subsonic filter corrects warped LPs, while an ultra-quiet noise floor and adaptable loading options unlock a new level of clarity from your cartridge.
Key Features
Intelligent Subsonic Filter
Since the very first iPhono launched in 2012, we have used our own in-house Subsonic Filter. As there is only minimal vertical modulation remaining at very low frequencies with an actual cut LP that is playable, we know that “vertical modulation” at low frequencies must be warp. By understanding fully how LP’s are cut and replayed, it is possible to filter record warp strongly without at the same time attenuating low bass or adding group delay.
Supports MM and MC Cartridges
With MM/MC, high/low and very low, the ZEN Phono is able to handle just about any cartridge. From 36dB all the way up to 72dB. So as your vinyl system grows over time, the ZEN Phono will always keep up.
36-72dB Gain Range
36-72dB gain range and load impedance adjustment button to support a range of cartridges
-151dBV Equivalent Input Noise
-151dBV measured Equivalent Input Noise. 20dBV quieter than some Stereophile Class A+

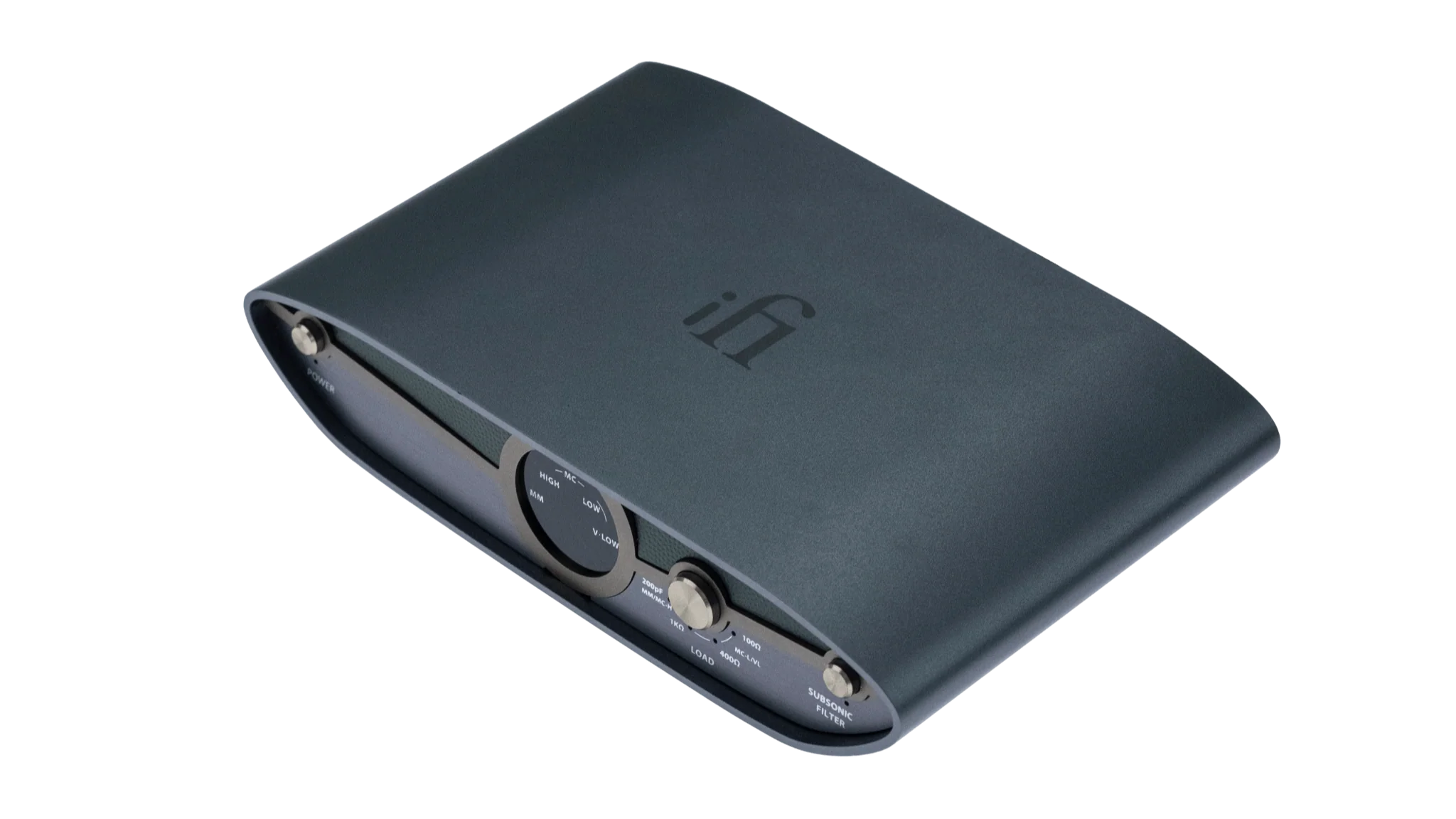

Super Smart. Super Subsonic.
Standard subsonic filters aren’t intelligent and are typically loathed by audiophiles. They filter not only the bass rumble from warped records but also the bass of the song. Our intelligent subsonic filter knows the difference between the two and only filters the warp, leaving the song completely intact, and without adding group delay.

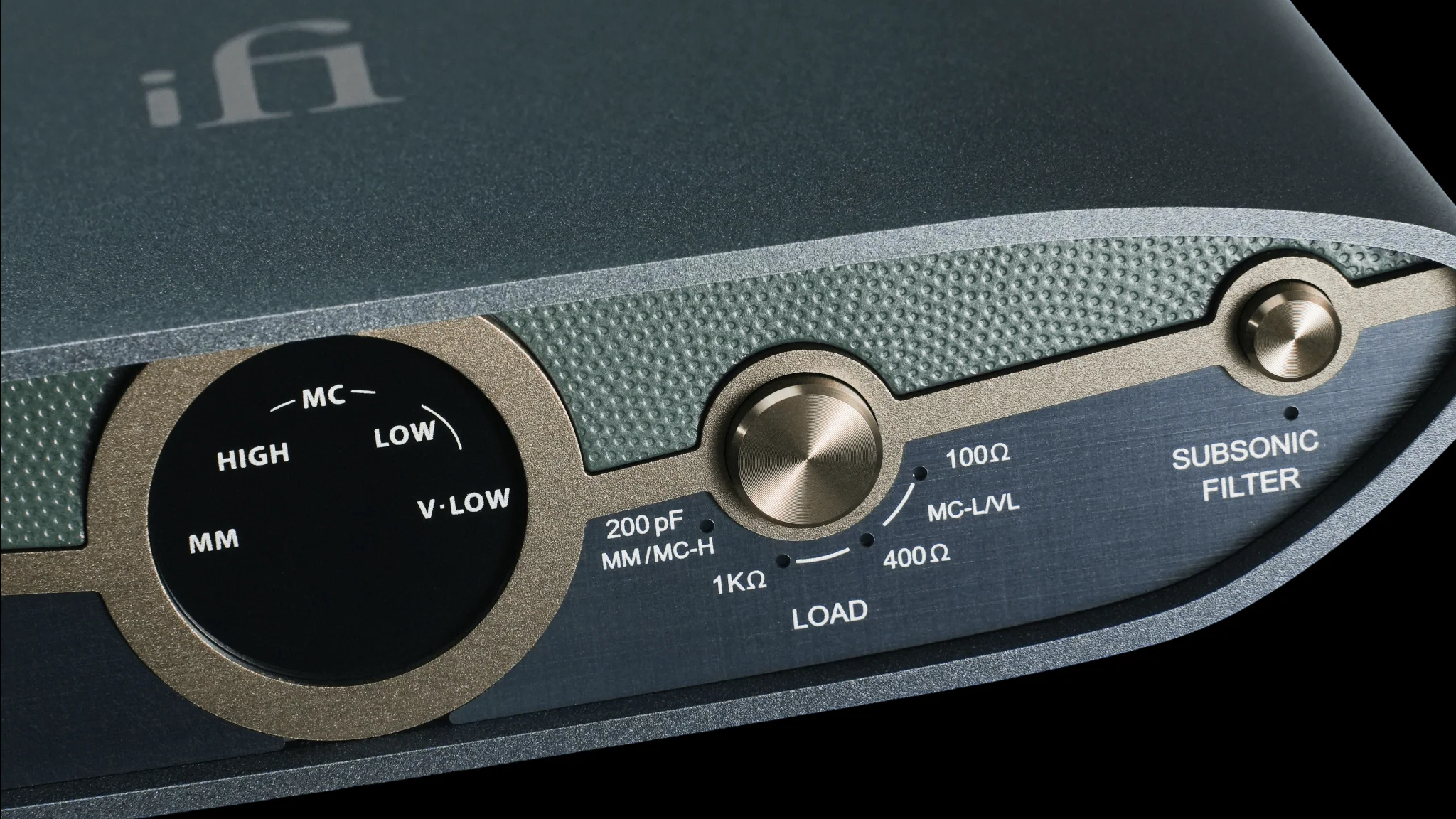

Your Cartridge. Your Rules.
The ZEN Phono 3 supports four MM/MC gain selections from 36 to 72dB and four input impedance settings. Mix and match gain and loading settings independently of each other with the all-new loading button, ensuring optimum compatibility with a wide range of cartridges and allowing you to get the sound ‘just right’.
Exacting Equalisation.
At the vinyl mastering stage, records are pressed with an inverse RIAA equalisation curve applied. This needs to be undone on playback by the phono stage to reveal the magic of the music. ZEN Phono 3’s RIAA EQ circuitry uses multiple TDK C0G capacitors in parallel. This is for best stability and the least distortion.
This allows for ZEN Phono 3’s RIAA playback equalisation curve to be within +/- 0.15dB tolerance from 20-20kHz, allowing you to hear your records more accurately than ever before.

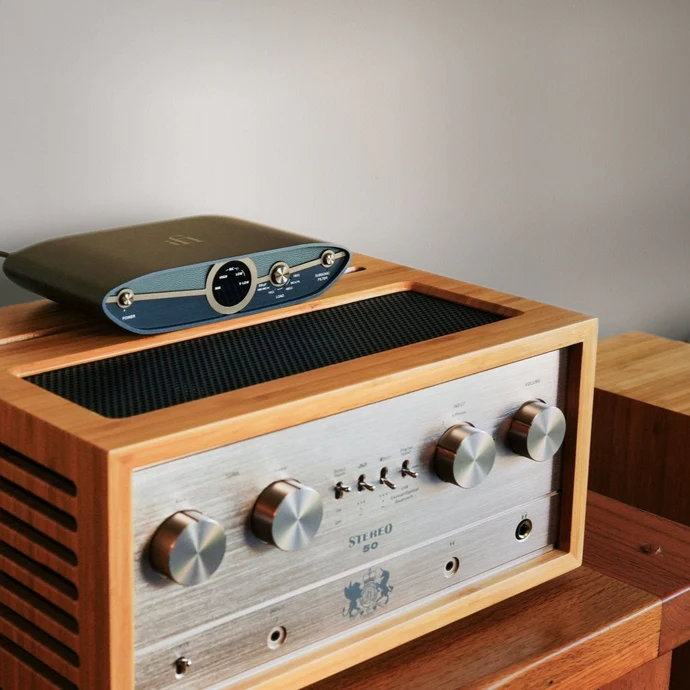

Shockingly Silent.
Clean Power Supply: The ZEN Phono 3 features an isolated high-tech clean power supply, ensuring only audio is amplified with a whisper-quiet noise floor.
Ultra-Low Noise: With an EIN of -151dBV, it’s 20dBV quieter than some Stereophile Class A+ phonos.
Enhanced Performance with iPower2: Pair with the SilentPower iPower2 for ultra-quiet, audiophile-grade power, thanks to Active Noise Cancellation II technology.

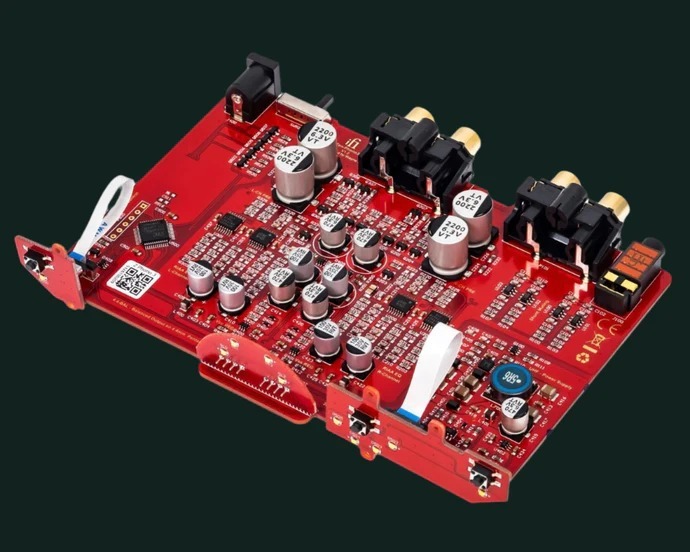

Superior Specification.
Zen Phono 3 boasts futuristic features unlike any other entry-level stage:
- MM/MC with 36-72dB gain range
- Independent loading adjustment
- Super-silent -151dBV noise floor
- Precise RIAA with balanced output
- Intelligent subsonic filter
- High-tech 1.2MHz clean power supply
Specifications
CHANNEL SEPARATION
>75dB (1kHz all modes)
DIMENSIONS (Length x Width x Height)
158 x 115 x 35mm (6.2” x 4.6” x 1.4”)
FREQUENCY RESPONSE
BAL: 20Hz-80kHz (-3dB)
SE: 20Hz-20kHz (-0.15dB)
GAIN SETTINGS
MM: 36dB
MC High: 48dB
MC Low: 60dB
MC V-Low: 72dB
INPUT IMPEDANCE
MM: 47KΩ (100/200pF)
MC High: 47kΩ (100/200pF)
MC Low: 1k/400/100Ω
MC V-Low: 1k/400/100Ω
LIMITED WARRANTY
12 Months*
MAXIMUM OUTPUT VOLTAGE
BAL:
100kΩ: ≥19.98V (THD+N <1%),
600Ω: ≥12.75V (THD+N <1%)
SE:
100Ω
NET WEIGHT
456g
OUTPUT IMPEDANCE
BAL: 200Ω
SE: 100Ω
POWER CONSUMPTION
No Signal ~1.5W; Max Signal ~1.8W
SNR
MM: 91dB(A)/82dB (unweighted 80kHz BW)
MC High: 81dB(A)/72dB (unweighted 80kHz BW)
MC Low: 89.6dB(A)/80dB (unweighted 80kHz BW)
MC V-Low: 78.6dB(A)/69dB (unweighted 80kHz BW)
TOTAL HARMONIC DISTORTION
MM: <-91dB/0.0027%
MC High: <-80dB/0.0095%
MC Low: <-70dB/0.031%
MC V-Low: 1k/400/100Ω
POWER SUPPLY REQUIREMENT
DC 5V/0.5A (centre positive)
What's in the Box
1x Zen Phono 3
1x RCA Cable
1x Power Adapter
1x Quick Start Guide
1x Warranty Card
