With greater SPL, broader frequency and power response compared to the previous model, its ultra-high dynamic range and hand-crafted drivers deliver performance superior to many larger, more expensive monitors.
Large diameter voice coil surrounds the magnet for superior linearity. Aluminum voice coil former and wire are low mass so transient response is quick and accurate. Diaphragm and dust cap are moulded as one piece in patented low-mass, highly rigid Magnesium Silicate Polymer providing unrivaled accuracy.
Core Features
7" Nearfield Monitor
Handcrafted drivers with aluminum voice coils
Class-D Amplification with DSP
Flexible operation with XLR and RCA inputs
Made in Denmark
Specifications
Status: Current
Segment: Pro
Range: BM mkIII
Type: Near Field Monitor
Analog inputs: XLR, RCA
Maximum SPL (1m, pair): 118
Amplifier Power Woofer (Watt): 50
Amplifier Power Tweeter (Watt): 50
AC Power Input: 100-240V 50/60Hz
Max Stand-by Power Consumption (Watt): 0,3
Max Power Consumption: 94
Lower Cutoff (Hz @85 dB +/- 3 dB): 42
Upper Cutoff k(Hz @ 85dB +/- 3 dB): 24
Box Principle: Rear-loaded bass reflex
Crossover: 2-way DSP-based
Crossover Frequency (Hz): 1900 Hz
Tweeter: 1.1in soft dome
Midrange/Woofer: 6.5in MSP
Weight kg: 7,7
Weight lbs: 17
Width mm: 186
Height mm: 320
Depth mm: 296
Width inches: 7 3/8
Height inches: 12 5/8
Depth inches: 11 5/8
Speakers per packaged box: 1
A Complete Streaming Solution.
Fusing the NEO iDSD 2’s award-winning DAC with our latest network streaming technology, the NEO Stream 3 is the ultra-res digital audio hub for enthusiasts.
Key Features
New Streaming Engine with Native Qobuz, Spotify, Tidal, and more
Our next-generation streaming engine allows for easier setup and usage, and broader native support. Accessing your favourite music, wherever you find it, is easier than ever.
Supports PCM 768kHz and DSD512 over the network
Native support for ultra-resolution formats ensures compatibility with the highest samples rates from all major streaming services, and every song in your library.
JVCKENWOOD'S K2 and K2HD Technology
Digitisation of original master audio tracks can leave music feeling sterile and lifeless. K2HD Technology reintroduces lost harmonic content to restore warmth and richness, resulting in a truer representation of the original master.
Award-winning DAC stage with a customised Burr Brown chipset
A highly customised DAC stage extracts maximum performance from the Burr-Brown chipset, ensuring your DAC never bottlenecks the joy of your listening experience.
Specifications
ANALOGUE OUTPUTS
4.4mm Balanced, SE RCA
ANALOGUE OUTPUT VOLTAGE
Balanced 4V RMS;
SE 2V RMS
DIGITAL INPUTS
Wi-Fi; Ethernet (RJ45, M12-X, Optical); 2x USB-A; USB-C (front)
DIGITAL OUTPUT
2x USB-A; S/PDIF Optical; S/PDIF Coaxial; AES/EBU; I2S
DIMENSIONS
214 x 151 x 41mm (8.4 x 5.9 x 1.6”)
HI-RES SUPPORT
768kHz PCM; DSD512 (22.6MHz)
NET WEIGHT
1.0 kg (2.26 lbs)
OUTPUT IMPEDANCE
Balanced ≤74Ω;
SE ≤37Ω
POWER CONSUMPTION
≤0.5W idle; 14W max.
SNR
≥106dBA @ 0dBFS
SYSTEM UPDATE
USB-C (back)
THD+N
≤0.0025% @ 0dBFS
POWER SUPPLY REQUIREMENT
DC 9V/2A; 12V/1.8A; 15V/1.2A (centre +ve)
What's in the Box
1x NEO Stream 3
1x OptiBox
1x USB-A to USB-C Cable
1x Ethernet cable
1x RCA Cable
1x 5V Power Adapter
1x Aluminium Base
1x Antenna
1x iPower X Ultra low noise power supply
1x SC-SC Fibre Optic Cable
1x Quick Start Guide
1x Warranty Card

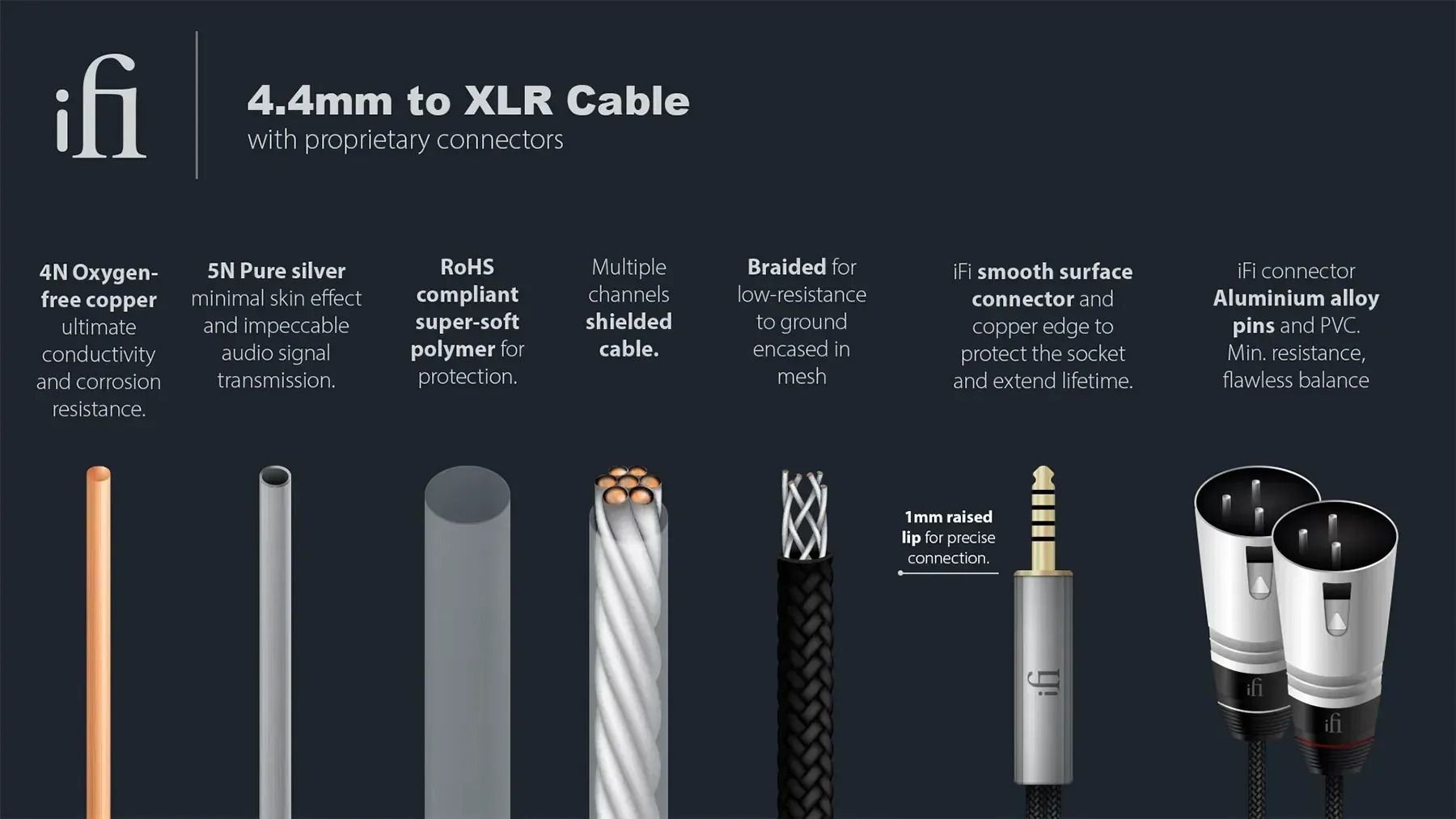

Looking for that perfect cable to enhance your balanced listening?, Then you need the iFi 4.4mm to XLR cable.
XLR. Excellent.
Created to give you maximum quality balanced signal transfer and minimum interference, iFi’s 4.4mm to XLR cable employs heavy OFHC continuous cast copper, silver matrix conductors with a total cross-section of 16AWG for the best signal transfer.
The ‘helix’ effect.
The cable construction is a custom helix minZ™ design, minimised both in capacitance and inductance. It also has intrinsic shielding provided by the minZ™ helix construction. The design protects the cable from RFI and EMI noise and provides the cleanest transfer medium possible. To further insulate the cable, we adopted the RoHS compliant, excellent dielectric property and super-soft (60P) HD polymer with 1500V AC spark resistance.
iFi Audio 4.4mm to XLR Cable Features
Specifications
CONSTRUCTION
Minimum inductance and capacitance minZ™ (for: minimum impedance) helix construction
CONDUCTORS
16AWG
CONDUCTOR MATERIAL
Heavy OFHC continuous cast copper silver matrix
INSULATION
RoHS compliant super-soft (60P) HD polymer
SHIELDING
Intrinsic shielding provided by minZ™ helix construction
CONNECTORS
iFi 'FINAL' 4.4 and XLR connectors
INSULATION RESISTANCE
100Mohm
SIZE
2M Wide (78.6") fully extended // 1M (39.3") per XLR cable
WEIGHT
133g (0.29 Ibs)
